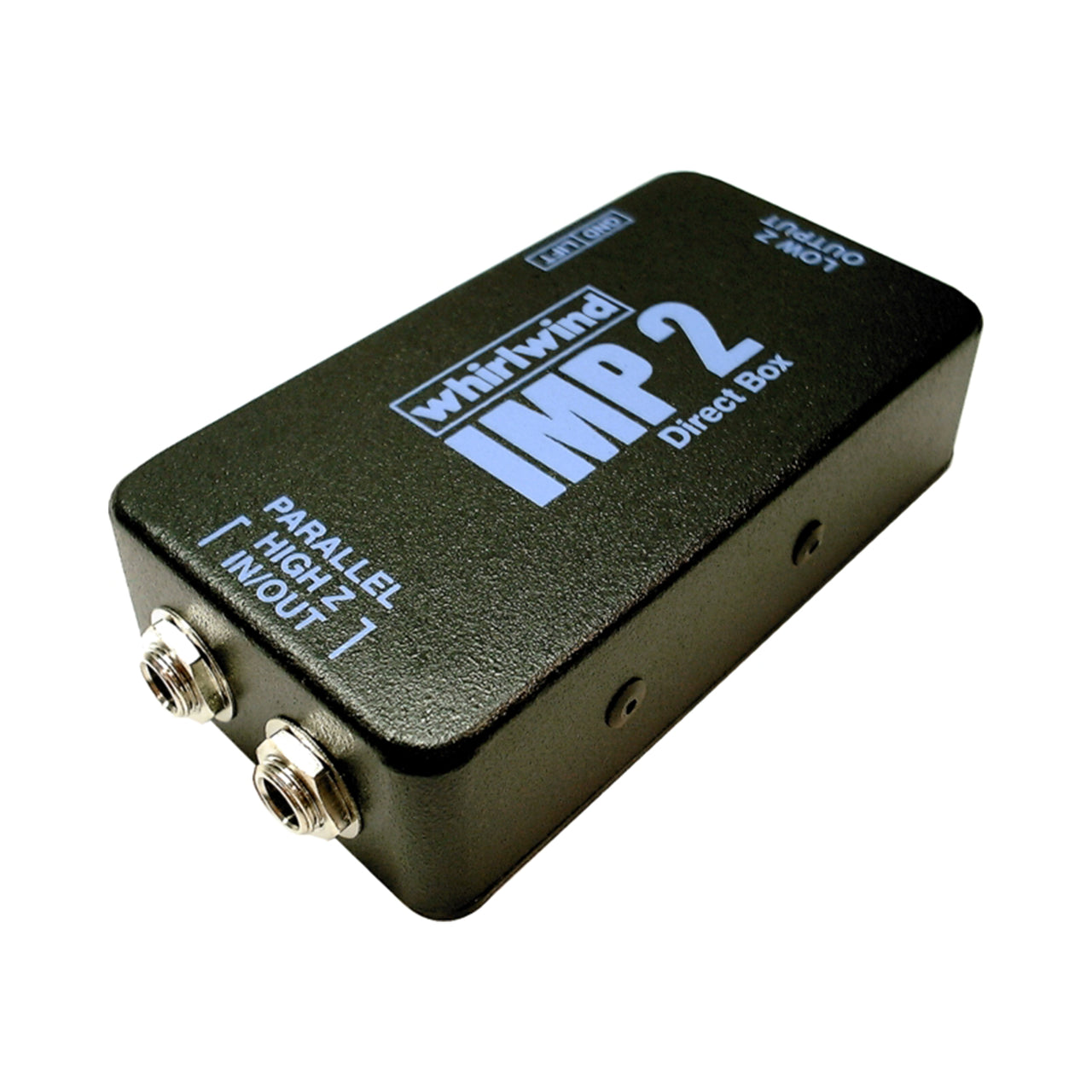

IMP2 Passive Direct Box

Built rugged on the inside and outside, this is the world famous DI found in pro systems everywhere. The IMP 2 converts a line or instrument level unbalanced signal to a low impedance mic level balanced signal.

Features

• 1/4" parallel wired in/out jacks
• Ground Lift switch to help isolate hum and buzz
• Uses Whirlwind's TRHL transformer

Specs

• Impedance Ratio (input to output): 133:1
• Frequency Response: 20Hz-20kHz ±1dB
• Level Change: (input to output): -20dB
