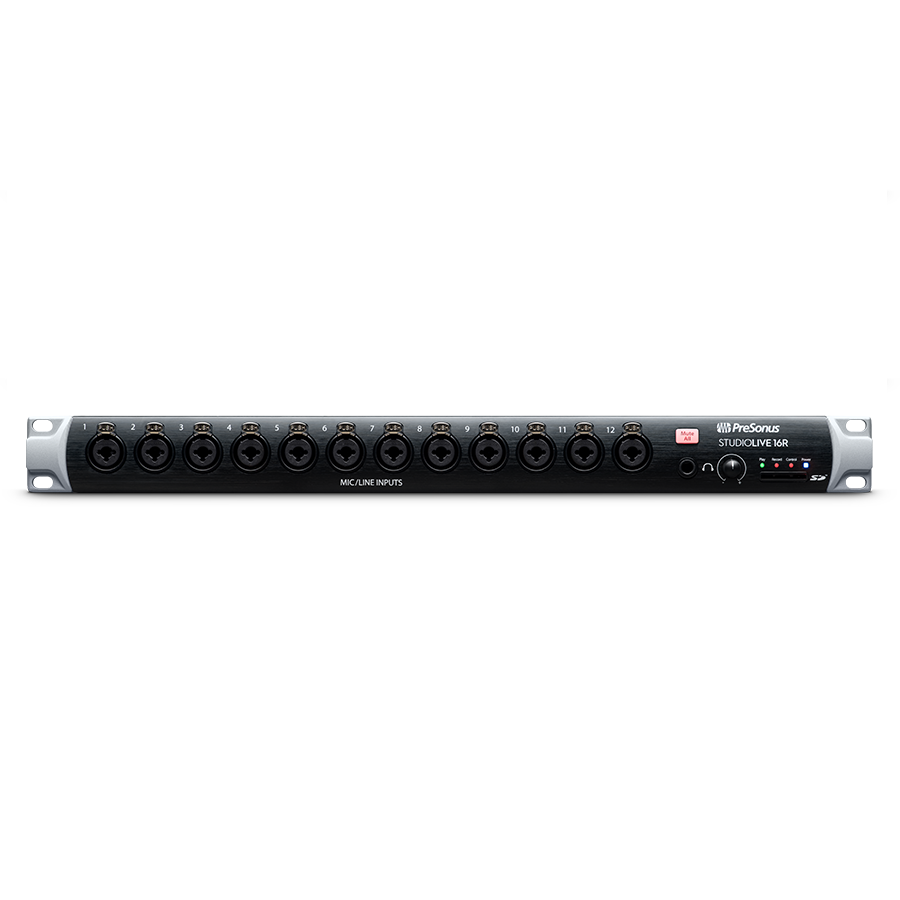

PreSonus StudioLive 16R 16x8 Digital Rack Mixer

The StudioLive® 16R digital mixer is four audio tools in a single rack space. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 36-channel (18x18) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rack mount digital mixer is as flexible or as powerful.

Features

• Powered by the new single-core PreSonus^® FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 18 input-channel digital rack mixer
  • 16 local digitally controlled XMAX mic/line inputs
  • 2 FLEX FX returns
• 10 mix buses
  • 6 FlexMixes (Aux, Subgroup, Matrix)
  • 2 dedicated FLEX FX buses
  • Stereo Main bus
• 130 simultaneous processors
  • HPF
  • Gate/Expander
  • Compressor with Fat Channel plug-in models
  • 4-band/6-band parametric EQ with Fat Channel plug-in models
  • Limiter
  • 31-band graphic EQ
  • 4 FLEX FX slots featuring legendary classic reverb emulations and delays
• State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• FLEX FX multi-effects processor with 2 slots to load legendary reverb emulations and delays with 2 dedicated effects buses
• 6 DCAs to control groups of channels
• 36-channel (18x18) recording over USB
• Onboard stereo SD recorder with true Virtual Soundcheck mode
• AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers, and more
  • Monitor Mix and Stage Box modes for use with StudioLive^® Series III console mixers
  • Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
• Remote control every mix function from your computer, iPad^®, or Android™ tablet with UC Surface (included)
• Put your musicians’ monitor mix under their fingers with QMix^®-UC (included) for iOS^® or Android
• Capture^® 3.0 multitrack software included
  • Automated Virtual Soundcheck
  • Store StudioLive mix scenes with your audio
• Advanced Studio One^® integration (Studio One Artist Included)
  • XMAX mic preamp control from Studio One
  • Control Fat Channel parameters from Studio One mixing console
• Ableton^® Live Lite included
